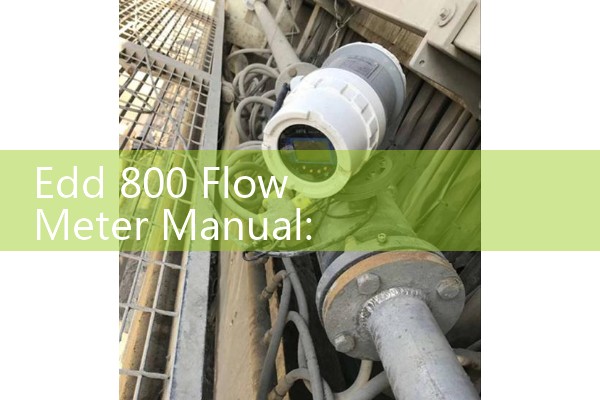

Edd 800 Flow Meter Manual: Diagnostic Parameters and Configuration
Quick Answer: The Edd 800 flow meter manual groups setup into process input, output scaling, and diagnostic registers. For daily operation, watch empty pipe detection, electrode resistance, coil current, and signal amplitude first. Send Silver Automation Instruments your DN size, flow range, and output type for a compatible replacement or configuration quote.
Field engineers often skip the diagnostic menu because the basic flow display looks normal. That is a mistake. A small deviation in coil current or a rising electrode resistance may show up as unstable readings later. We have seen this with a chemical batch operation in Vietnam where a DN80 meter read 2 percent high for weeks. The cause was a coated electrode. The manual gave the expected resistance range, and the maintenance team replaced the sensor without changing the converter.
The first block to check is the measured process values. These are not the configured values. They are live readings from the sensor. Flow velocity in m/s, totalizer in m3, and liquid conductivity in µS/cm are the usual top three. If conductivity falls below the threshold set in the manual, the Edd 800 may switch to empty pipe state. On pure water or condensate applications, you may need to change the empty pipe detection mode or lower the threshold after checking the actual conductivity.
Diagnostic Parameters Covered in the Edd 800 Flow Meter Manual
The manual normally describes a register list. Four parameters matter most on site. Empty pipe detection shows whether the pipe is full. Electrode resistance indicates coating, moisture, or cable faults. Coil current tells you if the excitation circuit is stable. Signal amplitude reflects the flow induced voltage at the electrodes.
For a healthy DN100 electromagnetic flow meter, electrode resistance can vary from about 0.5 MΩ to 2 MΩ depending on the liner and fluid. A sudden drop below 0.1 MΩ often means a coated or shorted electrode. Coil current is typically stable within a few percent of the rated value, often 125 mA or 250 mA depending on sensor size. Signal amplitude is not a fixed number because it changes with flow velocity and converter gain. The manual usually lists the expected mV per m/s for the sensor constant.
Look at the diagnostic history too. The Edd 800 manual may store minimum, maximum, and average values for these parameters. A trend is more useful than a snapshot. If coil current was stable for 12 months and then drifts, check the cable and junction box first. If electrode resistance climbs slowly, plan a cleaning cycle rather than replacing the meter.
Configuration Steps Before You Apply Power to the Loop
Start with the sensor data plate. Enter the DN size, liner material, electrode material, and calibration factor exactly as written. Do not copy a parameter set from a different meter. A DN50 meter with PTFE liner and stainless electrodes behaves differently from a DN50 meter with rubber liner and titanium electrodes. The converter uses these values to scale the raw signal into flow.
Then set the flow range and output. If your control system expects 4-20 mA HART, define 4 mA at zero flow and 20 mA at the maximum flow. For dosing or batching applications, set a pulse output in liters per pulse or m3 per pulse. The manual will show the pulse width and frequency limits. A common mistake is setting a pulse rate that exceeds the totalizer output frequency at full flow. The meter may saturate and the PLC counts fewer pulses than actual.
Damping is another setting that affects what the operator sees. For clean water a low damping value such as 2 seconds may work. For pulp stock, mining slurry, or food paste, a value from 10 to 20 seconds may be better to reduce noise. The Edd 800 manual usually provides a starting point and lets you adjust based on process stability.
Common Diagno
An empty pipe alarm is the most common call we receive from customers in Australia and Southeast Asia. First check whether the pipe is actually full. If the pipe is full and the alarm remains, check the conductivity settings. Demineralized water or glycol can be below the default threshold. The manual describes how to switch to a lower threshold or disable empty pipe detection for closed pipe systems where the pipe is always full.
Coating is another frequent issue. In wastewater, fat and grease can coat electrodes. In paper stock, fibers can build a layer. The result is a higher electrode resistance and a noisy signal. Some plants schedule a hot water or diluted acid rinse based on the diagnostic trend. Others install a cleaning port. The manual will not tell you the exact cleaning chemical for your process, but it will show which diagnostic parameter proves the coating is present.
Grounding faults are often hidden. A poor ground ring or missing grounding electrode can cause the flow signal to wander with motor drives nearby. The manual may list a signal-to-noise ratio or a crosstalk check. If the value is unstable, inspect the ground strap and the bonding between the meter body and the pipeline. On plastic or lined pipe, install grounding rings or a grounding electrode. This is even more important in Zone 1 or Zone 2 locations with long cable runs.
How Silver Instruments Helps With Edd 800 Configuration and Replacement
Here is the thing. The diagnostic screen is not a calibration screen. Most factory settings should stay locked unless you have a clear reason to change them. Silver Automation Instruments supplies electromagnetic flow meters for DN15 to DN2000 lines. Many customers replace an Edd 800 with a Silver Instruments meter when the original sensor is damaged or the converter is obsolete. We can match the process connection, liner, electrode material, and output signal. Typical outputs include 4-20 mA HART, pulse, RS485 Modbus, and Profibus DP on request. For hazardous areas, specify the Ex protection rating with your inquiry.
Send us the following data for a quote or configuration check: fluid type, conductivity, pipe size DN, flow range, pressure in bar, temperature in °C, and the output signal your PLC or DCS expects. We will recommend a compatible meter and a parameter map. You can reach Silver Instruments at Tel: +86-25-68650347, WhatsApp: +86-25-52155837, WeChat: +86 15365082610.
FAQ: Edd 800 Flow Meter Diagnostic Parameters and Configuration
Question: Where do I find the diagnostic parameters on an Edd 800 flow meter?
Answer: The local display usually has a diagnostic or service menu. The manual maps the menu path, such as Main Menu, Diagnostics, Status, and Parameter List. Some versions expose the same registers via HART or Modbus.
Question: Which diagnostic parameter should I check first?
Answer: Check empty pipe detection first. It is the most common reason for a zero flow reading. After that, check electrode resistance and coil current.
Question: How do I fix an empty pipe alarm that will not clear?
Answer: Confirm the pipe is full. Check conductivity in the process value screen. If conductivity is below the threshold, lower the setting or change the empty pipe detection mode after verifying the liquid properties.
Question: Can I configure an Edd 800 flow meter without the manual?
Answer: You can configure basic outputs from the front menu, but the manual helps with diagnostic registers and hidden service parameters. Always keep the sensor data plate information available before changing DN size or calibration settings.
Question: Can Silver Instruments replace an Edd 800 flow meter?
Answer: Yes. Send us your pipe size DN, liner material, fluid, flow range, pressure, temperature, and output signal. We will quote a compatible electromagnetic flow meter and help with the parameter mapping.
