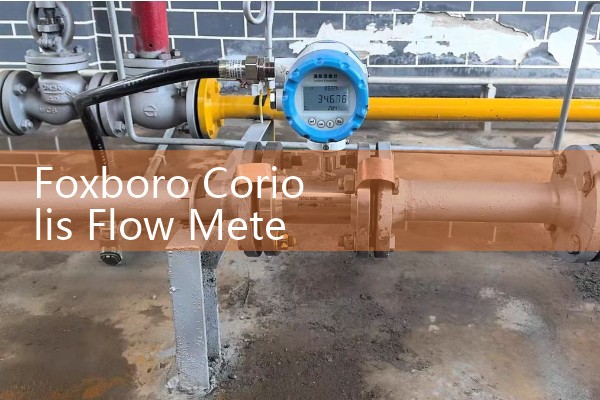

Foxboro Coriolis Flow Meter Sizing: High-Accuracy Mass Flow, Density, and Temperature Transmitters
Quick Answer: Foxboro Coriolis flow meter sizing needs five data points. These are mass flow rate, process pressure, process temperature, pipe size, and fluid density range. Silver Instruments builds high-accuracy mass flow, density, and temperature transmitters that fit many Foxboro-sized skids without rework.
Send us your pressure in bar, temperature in °C, pipe size DN, and flow range. We return a quote within 24 hours. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. Website: flow-meter.com.au.
Why Most Coriolis Sizing Starts With Mass Flow Not Volume Flow
Coriolis meters measure mass directly. Volume flow changes with temperature and pressure. Mass does not. That is why a Coriolis meter is the right choice for custody transfer, reactor feed, and batch dosing. In practice, most engineers skip this part and send a volumetric flow value. That causes errors.
A Foxboro style Coriolis sizing request should start with kg/h or t/h. For example, a fuel oil skid in Vietnam needed 1200 kg/h for diesel transfer at 40 °C. The pipe size was DN25. The density was 0.84 kg/L. Silver Instruments selected a SIL-CF25 meter with 4-20 mA HART output. Accuracy was ±0.1 percent of rate.
Key Sizing Parameters for Foxboro Style Coriolis Flow Meters
You need the following process data. Pipe size DN15 to DN150 covers most industrial applications. Mass flow range from 0 to 200000 kg/h covers small dosing to bulk transfer. Pressure rating is usually PN16 to PN100 or ANSI 150 to ANSI 600. Temperature range is -50 to 200 °C for standard meters. High temperature versions go to 350 °C. Density range is 0.3 to 3.0 g/cm³ for liquids. Some slurry and gas models go outside that band.
Wetted materials matter. 316L stainless steel is standard. Hastelloy C22 handles chlorides and acids. PTFE lining is not used in Coriolis meters. Instead the tube material itself gives chemical resistance. A chemical plant in Malaysia ordered a DN15 SIL-CF15 in Hastelloy C22 for 30 percent hydrochloric acid at 25 °C and 2 bar. The flow range was 50 to 500 kg/h.
Output signals depend on the control system. Most sites use 4-20 mA HART for mass flow, density, and temperature. Modbus RTU and RS485 are common in remote skids. Pulse output works for batching. Silver Instruments builds the transmitter with all three signals if needed.
Accuracy and Turndown in Coriolis Sizing
Accuracy is often stated as ±0.1 percent of rate for liquids. Gas accuracy is usually ±0.5 percent of rate. Density accuracy is ±0.0005 g/cm³. Temperature accuracy is ±0.5 °C. Turndown ratio is 20 to 1 or better. That means a DN50 meter can measure from 250 kg/h to 5000 kg/h with good repeatability.
Here is the thing. Turndown can be limited by pressure drop. A dense fluid at high velocity creates more pressure loss. So you need to check pressure drop across the meter. A paint manufacturer in Southeast Asia needed a DN40 Coriolis meter for solvent based paint at 1500 kg/h. The initial sizing gave 1.8 bar pressure drop. That was too high for the transfer pump. We changed the meter to DN50. Pressure drop fell to 0.4 bar.
Density and Temperature Transmitter Functions
A Coriolis meter gives three signals from one sensor. Mass flow, density, and temperature. That makes a Foxboro style Coriolis transmitter useful for quality control. A dairy plant in Indonesia measures milk fat with density. The meter sends 4-20 mA HART signals for mass flow and density. The DCS calculates concentration. Temperature from a PT100 sensor inside the tube compensates the density value.
For product interface detection, density is critical. A terminal in Nigeria uses a DN80 Coriolis meter on a m
Foxboro Coriolis Replacement and Equivalent Sizing
Many plants run older Foxboro CFT50 or CFS20 series meters. Replacement is not always one to one. Process conditions change over time. Pipe size may have been oversized from day one. Silver Instruments performs a free sizing check. We compare the current Foxboro model data against your actual flow, pressure, and temperature. Then we propose a direct fit replacement.
We have seen this on customer sites many times. A water treatment plant in Australia replaced a Foxboro DN50 Coriolis meter with a SIL-CF50 meter. The skid had 150 mm flanges. The new meter used the same face to face dimension and 4-20 mA HART wiring. Commissioning took half a day.
Recommended Silver Instruments Models for Common Sizing Cases
For DN15 to DN25 and flow up to 6000 kg/h, use the SIL-CF15 or SIL-CF25. These suit chemical dosing, pilot plants, and food additive lines. For DN40 to DN50 and flow up to 30000 kg/h, use the SIL-CF40 or SIL-CF50. These fit fuel oil transfer, edible oil batching, and solvent lines. For DN80 to DN100 and flow up to 120000 kg/h, use the SIL-CF80 or SIL-CF100. These handle crude oil, brine, and bulk chemical loading.
For DN150 and flow above 120000 kg/h, we build a custom SIL-CF150 with 316L stainless steel tubes. Contact Silver Instruments with your pressure in bar, temperature in °C, pipe size DN, and flow range. We will recommend one model with a formal quote.
Common Sizing Mistakes on Foxboro Coriolis Projects
One mistake is selecting a meter based on line size only. A DN50 pipe does not always need a DN50 Coriolis meter. Flow rate and pressure drop decide the meter size. Another mistake is ignoring gas content. Two phase flow degrades accuracy. Install the meter in a liquid full line. A third mistake is not checking the density calibration range. If your process density is outside the factory range, you need field adjustment.
FAQ on Foxboro Coriolis Flow Meter Sizing
What flow data do I need to size a Foxboro Coriolis flow meter?
You need minimum, normal, and maximum mass flow in kg/h. Add process pressure in bar, process temperature in °C, fluid density, viscosity, and pipe size DN.
Can Silver Instruments replace a Foxboro Coriolis meter without changing pipework?
Yes in most cases. We match flange standard, face to face length, and electrical output. Send us the Foxboro model code and a photo of the nameplate.
What accuracy can I expect from a SIL-CF Coriolis meter?
Liquid mass flow accuracy is ±0.1 percent of rate. Density accuracy is ±0.0005 g/cm³. Temperature accuracy is ±0.5 °C.
Do you supply Coriolis meters for hazardous areas?
Yes. Silver Instruments provides ATEX Zone 1 and IECEx certified transmitters. Intrinsically safe 4-20 mA HART output is standard for Zone 1.
How do I get a price for a high-accuracy mass flow and density transmitter?
Call Tel: +86-25-68650347 or send your pressure in bar, temperature in °C, pipe size DN, and flow range via flow-meter.com.au. We respond within one business day.
Silver Automation Instruments serves industrial users in Southeast Asia, Oceania, Latin America, Africa, and the Middle East. We build Coriolis mass flow meters, electromagnetic flow meters, ultrasonic flow meters, vortex flow meters, oval gear flow meters, thermal mass flow meters, pressure transmitters, and paperless recorders. For Foxboro Coriolis flow meter sizing support, contact us via WhatsApp: +86-25-52155837 or WeChat: +86 15365082610.
