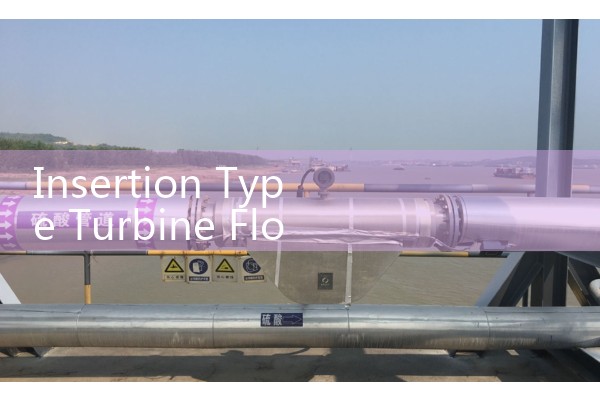

Insertion Type Turbine Flow Meter: Mechanical Rotor Maintenance and Pick-Up Signal Diagnostics
Quick Answer
Insertion type turbine flow meters fail most often from rotor wear, debris build-up, or a weak magnetic pick-up signal. Field maintenance should focus on shaft play, blade condition, and pick-up gap. A missing or distorted frequency output usually points to the pick-up coil or wiring, not the rotor.
What Fails First on an Insertion Turbine Meter
In practice, the mechanical rotor wears before the electronics. We have seen this on customer sites in Southeast Asia and West Africa. Rotor shafts run in process liquid without external lubrication. Suspended solids, sand, or polymer residues cut the shaft and bearings. DN15 to DN50 line sizes often show problems sooner because smaller rotors spin faster at the same flow velocity.
Mechanical Rotor Maintenance Procedure
Isolate and depressurize the flow line first. Remove the insertion probe using the retractor or hot tap isolation valve. Check radial shaft play with a dial indicator. Keep total indicator runout below 0.05 mm for DN50 and smaller meters. Use 0.10 mm as the upper limit for DN80 to DN300. Clean the rotor with a soft brush and solvent compatible with your process. Do not sand the blade edges. Blade edge rounding changes the meter K factor.
If the rotor spins freely but the meter output is unstable, inspect the pick-up sensor tip. A magnetic pick-up assembly sits close to the rotor blades. Set the gap with a feeler gauge. Standard gap for Silver Instruments insertion turbine meters is 1.5 mm for DN50 to DN150 and 2.0 mm for DN200 to DN600. A wider gap drops signal amplitude. A narrow gap can scrape the rotor or sensor tip.
Pick-Up Signal Diagnostics
Most engineers skip the simple tests. Here is the thing. A magnetic pick-up generates an AC sine wave with frequency proportional to flow. The signal amplitude depends on rotor speed and gap. At low flow, amplitude may be only 20 to 50 mV peak to peak. At normal flow, expect 200 mV to 2 V peak to peak. Use a multimeter with AC millivolt range or an oscilloscope. A steady DC voltage or zero AC reading means the pickup is dead or the rotor is not turning.
Check the pick-up coil resistance next. A typical Silver Instruments insertion turbine pick-up coil reads 800 to 1200 ohms across the two signal wires. An open circuit or resistance below 200 ohms points to a shorted coil. If the resistance is normal but the frequency output drops to zero at high flow, remove the sensor and check for metallic particles on the magnetic tip. Iron fines from pipe corrosion often coat the sensor. This coating weakens the magnetic field and the output signal.
Signal Wiring and Grounding Checks
For insertion type turbine flow meters with remote amplifiers or transmitters, check the cable shield. Ground the shield only at the controller end. Do not ground both ends. A ground loop adds 50 Hz or 60 Hz noise to the signal. Keep signal cables at least 300 mm away from VFD motor cables. Use twisted pair cable with overall foil shield. A pipe fitter in Vietnam ran a pick-up cable inside the same conduit a
Cleaning Intervals by Application
For clean water and finished fuels, inspect the rotor every 12 months. For wastewater, raw water, or liquids with suspended solids below 2 percent, inspect every 6 months. For abrasive slurries or polymer solutions, inspect every 3 months. Use mechanical rotor inspection data to schedule pick-up signal re-gapping. Silver Instruments recommends replacing the rotor kit after 3 to 5 years in continuous duty. But this interval depends on solids loading, operating temperature, and flow velocity.
Recommended Silver Instruments Models
For DN50 to DN150 lines with clean water, use a Silver Instruments insertion turbine flow meter with 4-20 mA HART output and integral temperature compensation. For DN200 to DN600 raw water or wastewater lines, specify a hot tap insertion probe, 316 stainless steel rotor, and magnetic pick-up with 1.5 mm to 2.0 mm gap. For oil and gas custody transfer or offloading lines, ask for a meter with pulse output, NIST traceable calibration, and a preamplifier mounted in a weatherproof junction box.
FAQ: Five Most Common Field Questions
Question 1: The rotor does not turn but the pick-up resistance is normal. What should be checked first?
Answer: Pull the probe and inspect for debris packed between the rotor and the retainer. Check shaft play. A pick-up coil can be good while the rotor is mechanically locked.
Question 2: The flow meter output reads zero on a running pump. What is the next step?
Answer: Measure the pick-up coil AC millivolts at the sensor head. If you see 0 mV AC and the rotor turns, replace the pick-up. If you see 20 to 50 mV AC at low flow, the rotor may still turn but the transmitter threshold is set too high.
Question 3: Which Silver Instruments model fits a DN100 cooling water line?
Answer: Specify the Silver Instruments SIT-100 insertion turbine flow meter. The SIT-100 covers DN65 to DN150, 0.3 to 10 m/s flow velocity, 4-20 mA HART, and 316 stainless steel rotor. Check your exact pressure and temperature before ordering.
Question 4: How often should we re-gap the magnetic pick-up?
Answer: Check the gap at every rotor inspection. For wastewater, this means every 6 months. For clean water, every 12 months. Set the gap to 1.5 mm for DN50 to DN150 and 2.0 mm for DN200 to DN600.
Question 5: Can an insertion turbine meter handle reverse flow?
Answer: Some bidirectional designs can. Standard Silver Instruments insertion turbine meters are unidirectional. Ask for a bidirectional pick-up and dual pulse output if your process flow can reverse.
Contact Silver Instruments for a Field Support Quote
Send your pipe size (DN), flow range in m3/h, process temperature in °C, pressure in bar, and liquid type to Silver Automation Instruments. A field support engineer will reply with a rotor maintenance kit recommendation and pick-up signal diagnostic checklist. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610.
