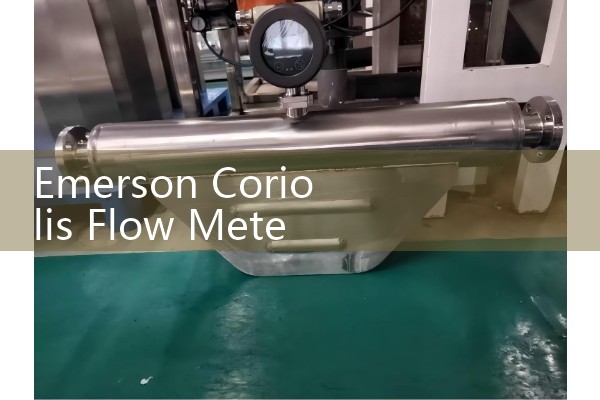

Emerson Coriolis Flow Meter Manual Overview: Operational Settings and Configuration
Quick Answer: Emerson Coriolis flow meter manuals provide step by step instructions for transmitter configuration, output wiring, zero calibration, density calibration, and alarm settings. Most field problems come from wrong 4-20 mA assignment, skipped zero verification, or a density input that does not match the process. Silver Instruments offers Coriolis meters with similar setup steps and direct support for process plants.
This guide covers the Emerson Coriolis flow meter manual overview, operational settings and configuration for field engineers and skid builders. It focuses on settings that affect daily operation.
What the Emerson Manual Includes for Operational Settings
The manual lists menu paths for mass flow, volume flow, density, temperature, and totalizer reset. A typical configuration menu shows flow direction, low flow cutoff, damping, and two output channels. For a DN15 meter, the manual often shows a flow range in kg/h. In practice, a chemical batch skid may run from 20 to 400 kg/h. The 4-20 mA HART output must be mapped to mass flow or density. Most engineers skip this part until the control system shows a wrong reading.
Zero calibration is a key section. The manual tells the user to isolate the meter, fill the sensor with process fluid, close the block valves, and run the zero command. A stable zero at no flow stops small offset errors. We have seen a paint manufacturer in Southeast Asia lose a full batch because zero verification was done with an empty sensor. That mistake caused a density shift and a wrong pigment ratio.
Configuration Steps Most Users Search For
Users often look for the exact menu path to set output scaling. The Emerson manual shows how to assign PV, SV, TV, and QV values. Set 4 mA at zero flow and 20 mA at the maximum flow range. If the process runs from 0 to 600 kg/h, set the upper range value to 600. If the meter also sends density over HART, confirm that the secondary variable is not overwritten by temperature. In practice, most DCS integration issues come from a PV mapping error.
Density calibration matters for food and beverage, especially for syrup or chocolate. The manual asks for two-point density calibration with air and water. Some users only do water. That works for clean water but not for high viscosity products. One dairy plant in Australia fixed a brix reading error after running the two-point method from the manual. The sensor temperature input, usually PT100, must also read within 0.5 °C of the reference.
Alarm Settings and Hazardous Area Notes
The manual separates process alarms from device alarms. Process alarms include high flow, low flow, density limit, and two-phase flow detection. Device alarms include electronics failure, sensor failure, or memory error. For ATEX Zone 1 areas, the configuration must match the certified entity parameters. Do not change output settings without checking the control drawing. A natural gas metering skid in the Middle East may need different alarm delays than a wastewater dosing line.
Where Emerson Manuals Leave Gaps
Emerson manuals are detailed. But they often a
Silver Instruments Coriolis Flow Meter as an Alternative
Silver Instruments supplies Coriolis mass flow meters with similar operational settings. A DN15 meter handles 0.1 to 600 kg/h. A DN25 meter handles 0.2 to 2,000 kg/h. Wetted parts come in 316L stainless steel. The transmitter supports density, temperature, mass flow, and totalizer. The local display shows the same menu structure as many traditional Coriolis transmitters. This cuts the learning curve for operators who already know Emerson menu logic.
Because the price is lower than the large global brands, many system integrators in Vietnam, Indonesia, and Nigeria use Silver Instruments meters on skids and local projects. A recent inquiry from a chemical distributor in Thailand involved a DN15 meter for 0 to 300 kg/h, 6 bar pressure, 35 °C, and fluid density near 0.95 g/cm3. Silver Instruments quoted the exact meter with 4-20 mA HART and a stainless steel manifold.
FAQ: Emerson Coriolis Flow Meter Manual Overview and Configuration
Where can I find the Emerson Coriolis flow meter manual?
The manual is usually available from the manufacturer portal or the product CD. For older models, field service teams often keep a PDF copy. Silver Instruments also helps clients with basic setup questions when they send the transmitter model.
What are the most important settings to check first?
Check the PV assignment, the 4 mA and 20 mA scaling, low flow cutoff, and density calibration. Confirm the process fluid density matches the configured value. Most field errors fall into these four areas.
Does Silver Instruments configure meters for Emerson replacement?
Yes. Send your pressure in bar, temperature in Celsius, pipe size in DN, flow range, and fluid density. Silver Instruments configures the Coriolis meter before shipment. That saves time on site.
Do these meters support Modbus or pulse output?
Silver Instruments Coriolis mass flow meters support 4-20 mA HART, RS485 Modbus, and pulse output. The output type depends on the transmitter board ordered. Specify the output when you request a quote.
What industries use these Coriolis meters?
We supply oil and gas, chemical, food and beverage, water and wastewater, and marine projects. Typical fluids include diesel, palm oil, syrup, brine, and light chemicals.
For a quote or a configuration review, contact Silver Instruments. Call +86-25-68650347, WhatsApp +86-25-52155837, or WeChat +86 15365082610. Send your pressure in bar, temperature in Celsius, pipe size in DN, and flow range. The team will reply with a Coriolis flow meter price and setup details.
